Windmill Products

Our commitment to sustainability extends beyond solar power. We offer a comprehensive range of services and products, including windmill lighting, aviation lights, windmill electrical products, and various windmill-related solutions. These offerings exemplify our dedication to harnessing the full potential of renewable energy sources.

Green Ray Technologies PVT. LTD.,, we recognize that the need for sustainable solutions is more urgent than ever. As a result, we are continuously expanding our capabilities and product portfolio to meet the evolving demands of our clients and the planet.

As we strengthen the power of the sun with our solar initiatives, we remain steadfast in our mission to illuminate a brighter, more sustainable future for all. Join us on this journey towards a greener tomorrow with Green Ray Technologies

PRODUCT DESCRIPTIONS

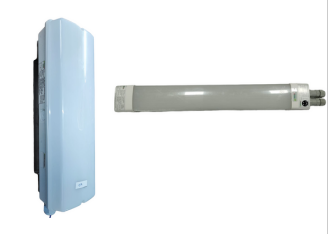

NOZELLE LIGHT/TOWER LIGHT

PRODUCT NAME: 32W/20W WITH/WITHOUT EMERGENCY BACKUP LIGHT

Product Descriptions

  • Supply:110VAC-277VAC single Phase
  • Supply:110VAC-277VAC single Phase
  • PF 0.95
  • Frequency: 50HZ or 60 Hz
  • LED: Seoul or Equivalent 100 to 130 lm per watt
  • Wattage: 32W/20W, IP65
  • Material- Housing: Aluminium
  • Input Power connector: QPD Connector.
  • No. of connectors:2nos, Lighting & Loop Connection.
  • Battery: Li-ion
  • Back-up time: >60 Mins/ >90 MINS
  • Product Dimension: Size: 365 (L)x100(W)x110(H)/ 599(L)x 83(W)x81(H)

HUB LIGHT

PRODUCT NAME: LED EMERGENCY LIGHT

Product Descriptions

  • 30W LED Emergency Light with inbuilt battery bank with TRI protection.
  • HOUSING MATERIAL: PC AND ALUMUNIUM
  • Body Material: PC
  • Fixing Lamp: Stainless steel
  • Constant current power supply
  • IP65 Housing
  • back up time:>60mins
  • Product Dimension: 345(L)x106(W)x77(H)

Tower Emergency light

a.K-type

Product Descriptions

  • AC Input / UPS Input:120 ~ 277 V AC
  • AC Output for Next Light :120 ~ 277 V AC
  • Frequency: 50Hz / 60 Hz +/- 6%
  • Light Body / Housing:Aluminum
  • Life Cycle : 20 Years
  • Input Power: 14W +/- 10%
  • Battery: Li-ion
  • Product Size : Max L:250mm,W:125mm,H:110mm

Tower Emergency light

b. D - type(New Hub lighht)

Product Descriptions

  • AC Input / UPS Input :100 ~ 277 V AC * Input ,
  • Also include " 30W / 20W" in Tower Emergency light
  • AC Output: 100 ~ 277 V AC * Output ,
  • Frequency: 50Hz / 60 Hz +/- 6% ,
    • Input Power :30W +/- 10%,
  • Backup Duration:>90Mins,
  • Battery Type :Li-ON,
  • IP Degree:65,
  • Light Body / Housing:Aluminum,
  • Life Cycle:20 Years,
  • Product Size:L:275mm,W:120mm,H:129mm

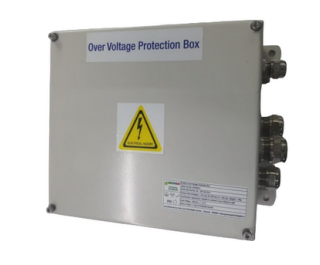

OVP

PRODUCT NAME: OVER VOLTAGE PROTECTION UNIT (UP TO 2 BEACON LIGHTS)

Product Descriptions

  • Weight: < 5Kg
  • Vibration Protected
  • PRODUCT DIMENSION: L:270MM, W: 200MM, H:115MM
  • Lifetime: 20 years
  • IP 65
  • AC Input / UPS Input: 120 ~ 240 V AC
  • AC Output : 120 ~ 240V AC
  • OVP Body: CR4 grade
  • Frequency:50Hz / 60 Hz +/- 6%

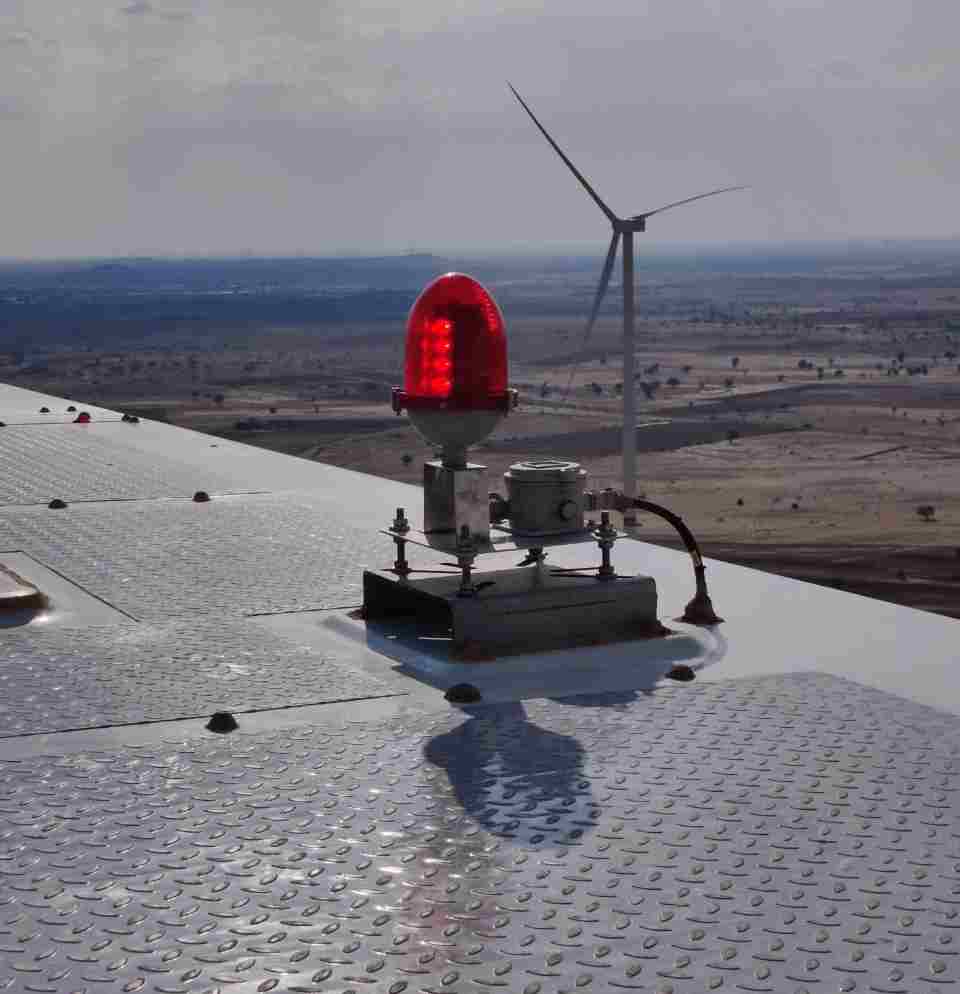

AVIATION BEACON LIGHT

PRODUCT NAME: BEACON LIGHT

Product Descriptions

  • Working Environment: -40⁰C+55⁰C
  • IP GRADE: IP65
  • POWER SUPPLY: AC 230V AC+/-10%, 50Hz +/-6%
  • AVIATION BEACON POWER:40W max(steady state) & 20W max at 20FPM.
  • 1 TOWER BEACON: < 10W
  • COLOUR: RED/WHITE/RED(NIGHT)/WHITE (DAY)
  • PACKING SIZE: 280mm(L)x280mm(W)x400mm(H)
  • N/W: < 5kg
  • Default FPM Setting: 20 FPM
  • ALARM CONTACT: NORMALLY OPEN AND COMMON
  • BEAM SPREAD: 360 Degree

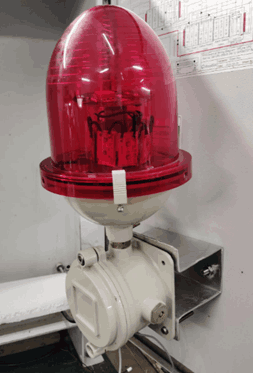

7W Tower Beacon Light

Product Descriptions

  • Product Name: 7W Flashing Red Obstruction Light
  • Input Voltage:90 ~ 270V AC,
  • Frequency:50/60Hz +/- 6%
  • IP Protection:IP65
  • Weight:< 5kg
  • Product Size: Max L: 175 mm ,W : 170 mm , H : 420 mm
  • Life Time:20 years

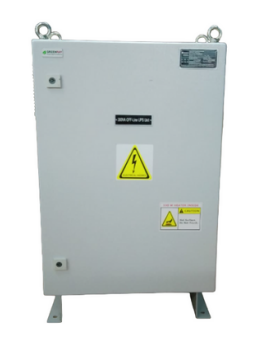

UPS for windmill aviation warning lights

PRODUCT NAME: 300VA OFF-LINE UPS UNIT

Product Descriptions

  • Application Type: Indoor
  • Short Circuit Protection: Yes, up to 6KA.
  • Operating Temperature: -20⁰C to +50⁰C & Storage Temperature: -40⁰C to +70⁰C.
  • Rated Current (Input): < 3 Amps.
  • Over Voltage Protection: Yes, Class II.
  • IP Protection: IP54
  • IP Protection: IP54
  • In build thermostat heating and cooling
  • Net weight: < 100 Kgs. back up time:12 hours

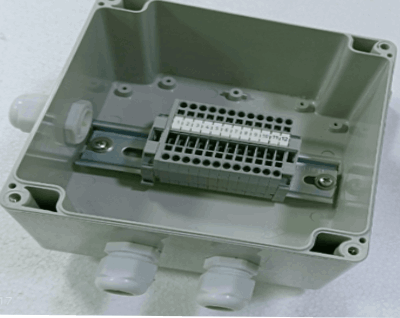

ABS_Electrical Junction Box for Low Voltage System

Product Descriptions

  • Product Name: ABS_Electrical Junction Box for Low Voltage System
  • AC Input / UPS Input:120 ~ 240 V AC * 1
  • AC Output :120 ~ 240V AC * 1
  • Frequency:50Hz / 60 Hz +/- 6%
  • IP Degree:65
  • Life Cycle:20 Years
  • Material Type : ABS
  • Vibration protection: Yes
  • Product Size:L:150mm,W:150mm,H:100mm
